KMBD-JGZ1.0 测试

Description Features

Housing material:

High-strength die-cast aluminum

Ultra-clear tempered glass

Waterproof silicone gasket

Surface Finish :

Electrostatically applied polyester powder coat

Installation:

Non-adjustable brackets

Luminaires are not allowed to be installed in low-lying water

Cable:

ON/OFF:500mm two-core lmm² (Power cable)

ON/OFF AC220V: 500mm five-core 1mm² sheathed cable(Power cable)

Features Benefits:

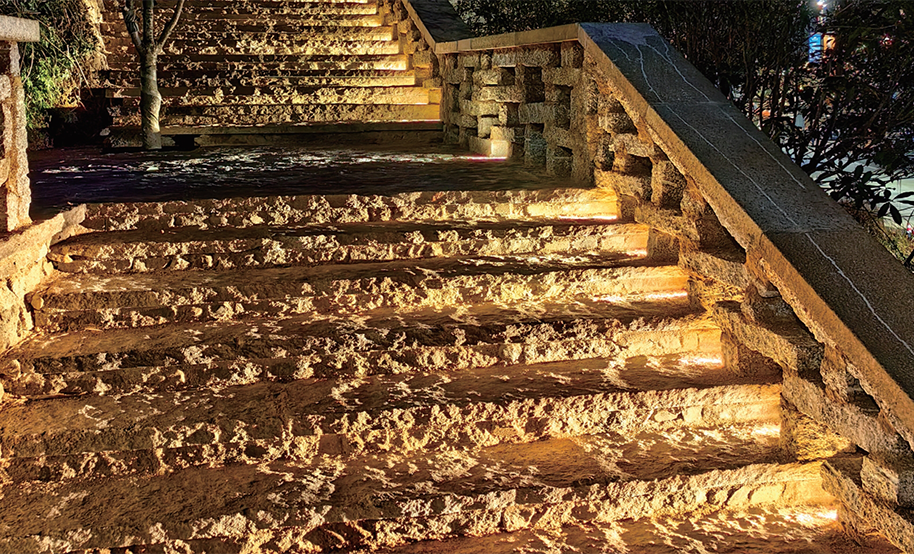

1.The design inspiration comes from May beetle ,perfect into the installation scene


2.Wide Voltage Input:Precise electronic scheme, powerful reach and energy-saving


3.Bionic Accessories, integrated into the environment, optional anti glare accessories

OPTICAL DATA

Power 3W
15°Distance (m)11.522.53
Max lumination (lux)1998.35888.16499.59319.74222.04
Halo diameter (m)0.240.360.480.590.71
25°Distance (m)11.522.53
Max lumination (lux)795.64353.62198.913127.3088.40
Halo diameter (m)0.390.590.790.981.18
30°Distance (m)11.522.53
Max lumination (lux)436.32193.92109.0869.8148.48
Halo diameter (m)0.530.791.051.321.58
40°Distance (m)11.522.53
Max lumination (lux)324.46144.2081.1251.9136.05
Halo diameter (m)0.620.941.251.561.87
60°Distance (m)11.522.53
Max lumination (lux)149.0366.2437.2623.8416.56
Halo diameter (m)1.131.692.252.823.38

Model Information

Model

Length

Power(Pcs)

Voltage

Color Temperature

Beam Angles

Control

Chips Brand

KMGD-JGZ 1.0-PZ-1A75*38*76mm3W(1pcs)

AC220

DC24V

2200K-6500K

15° / 25° / 30° / 40° / 60°

ON/OFF

CREE

OSRAMS

EPISTAR

LUMILED

SANAN

Dimensions

EVO Accessories

Certification/Compliance

IP66
AC220V
DC24V
-40+55
10%-90%
OFF
JCXKPT
IK07

Downloads

Product Instruction Downloads

KMBD-JGZ1.0-PZ-1W IES

Downloads
